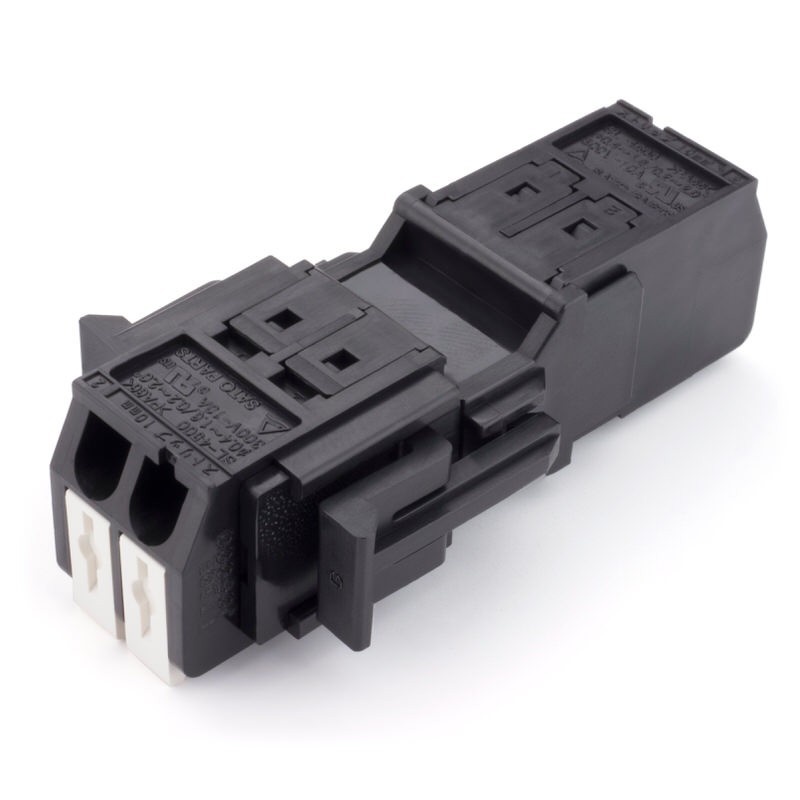

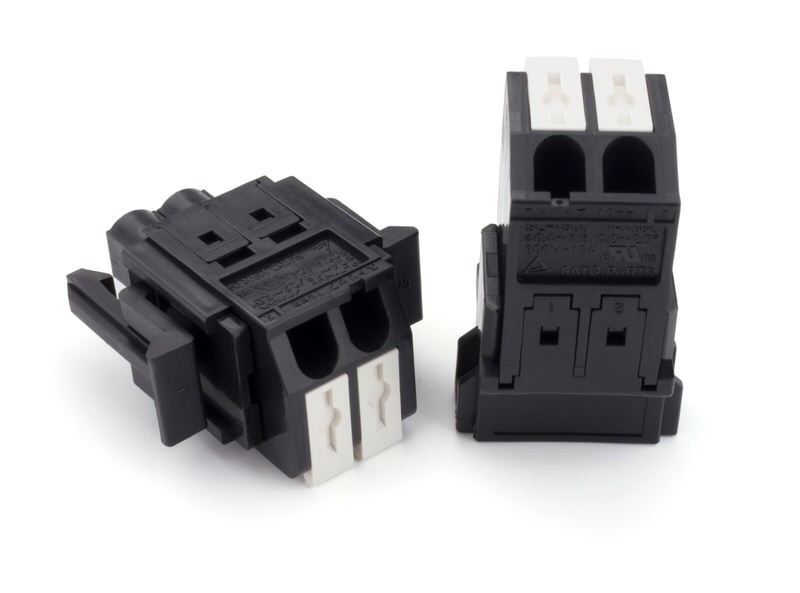

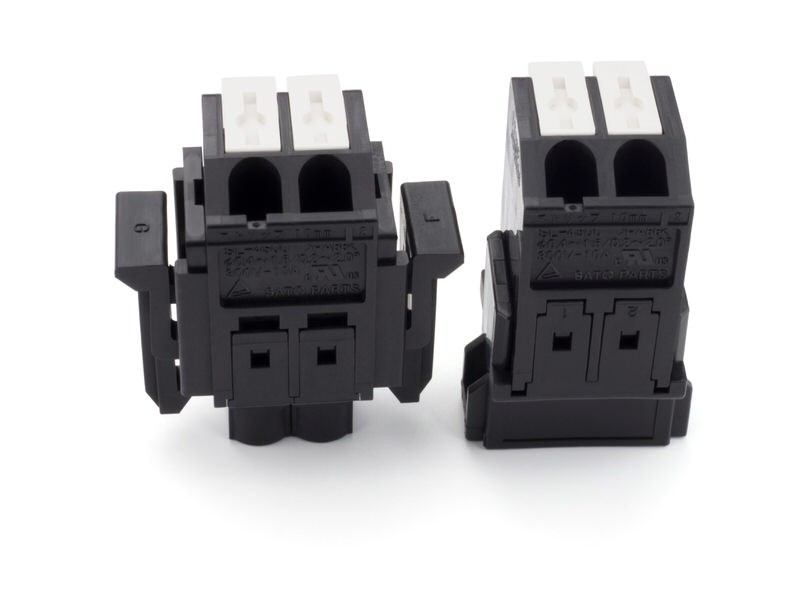

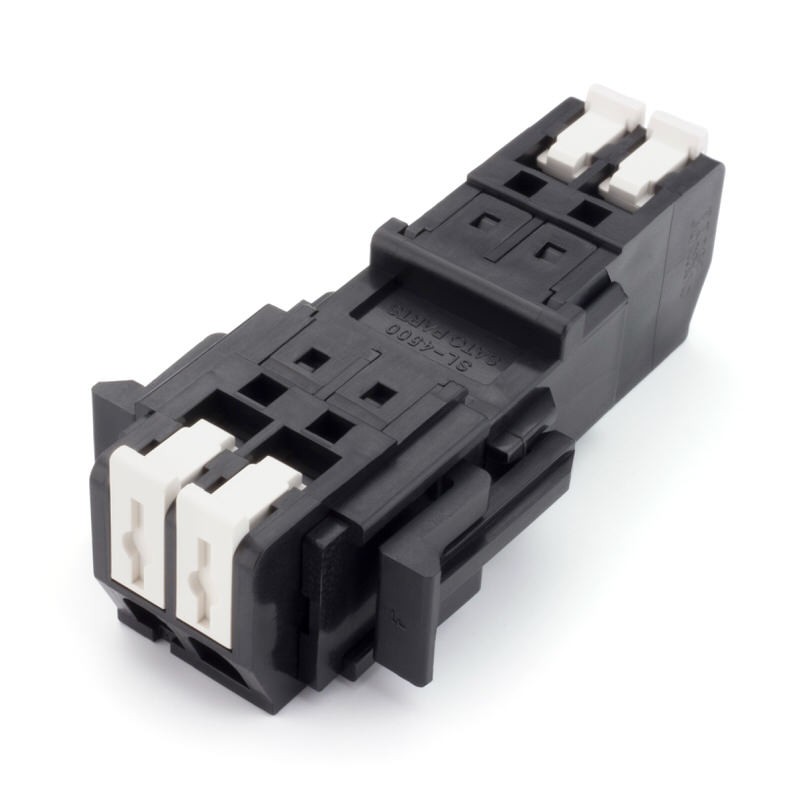

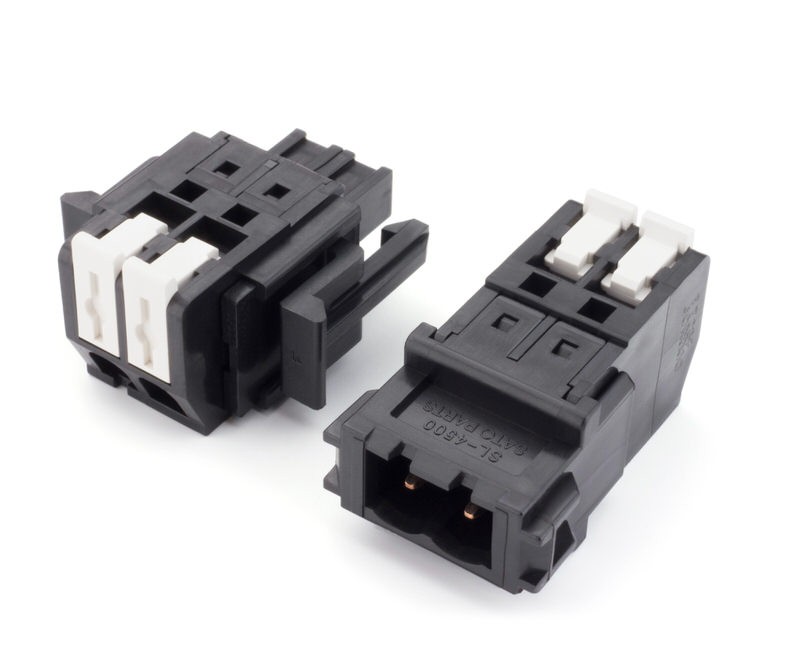

Screwless Terminal SL-4500-AS, DC300V-10A
Description
Terminal model:
Wire strip length: 10mm
Wire range: Solid : 0.4mm-1.6mm (AWG26, AWG14), Stranded : 0.2mm2-2.0mm2 (AWG24, AWG14)
Wire range Diameter: Diameter of each strand : 0.18mm min.
Suitable wire size for maximum rating:
Main insulator (housing): Nylon 66 (UL94V-0)
Number of poles:
Approvals: UL (approved for field wiring), C-UL, TUV (IEC61984)
Dielectric strength: AC2000V (1 min)
Pitch: Pitch 5.08mm
Rating: DC300V-10A
