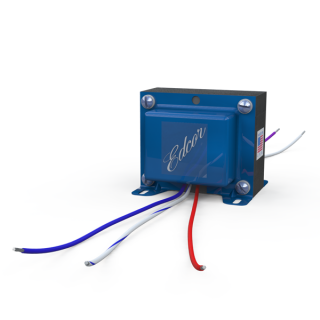

Edcor GXSE10-6-5K Single ended Tube output Transformer

196,35 €
(165,00 € excl. vat)
Scale price:
  • from 4: 190,46 €*
  • from 8: 186,53 €*
* Price per unit
Scale price:
  • from 4: 190,46 €*
  • from 8: 186,53 €*
* Price per unit
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 56 days
  • Shipping time: 57 - 58 workdays
Order Now
Category
Item no.
  • GXSE1065K
Product weight
  • 0,85 kg
Shipping weight
  • 0,95 kg
Compliance

Interesting items


  1. Mundorf MCap Classic 630V 0,10 uF ±3%
    6,99 €
    (5,87 € excl. vat)
    including VAT., plus shipping
  2. Edcor CXPP10-MS-10K Transformer (EM0750)
    Edcor CXPP10-MS-10K Transformer (EM0750)

    Average Rating: 5/55
    142,60 €
    (119,83 € excl. vat)
    including VAT., plus shipping

Description

10W, single ended tube output transformer for 5K Ohms to 6 Ohms.

Specifications


Wattage: 10W
Primary (input) Impedance: 5K Ohms
Screen/Grid Tap: 40%
Secondary (output) Impedance: 6 Ohms
Primary Inductance: 5H
Frequency Response: 40~18K Hz., <>
THD+Noise: <0.1% @="" 1k="">
Bobbin Material: Glass Filled Nylon 6/6
Flamability Rating: Class B 130°C
Core Material: M6 29 ga. line grain oriented steel
Termination: UL1015, 20 ga. lead wire
Mounting: Zinc plated steel channel/frame
Weight: 1.75 lbs.
Dimensional Drawing: 15000-EI087-100-HX
Compliance: RoHS, REACH
