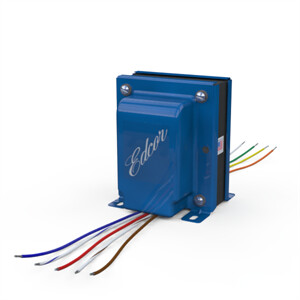

Edcor CXPP21-MS-8.6K

166,04 €
(139,53 € excl. vat)
including VAT., plus shipping
  • In stock!
  • Stock: More than 10 available
  • Shipping time: 1 - 2 workdays
Order Now
Category
Item no.
  • CXPP21-MS-8.6K
Product weight
  • 2,30 kg
Shipping weight
  • 2,70 kg
Compliance

Description

21W, push-pull tube output transformer for 8.6K Ohms to 4, 8 and 16 Ohms.
Products specifications
Schematic
Wattage 21W
Primary (input) Impedance 8.6K Ohms
Screen/Grid Tap 40%
Secondary (output) Impedance 4, 8 & 16 Ohms
Primary (input) Max.Curren
Frequency Response 20~20K Hz., <1dBu
THD+Noise <0.1% @ 1K Hz.
Bobbin Material Glass Filled Nylon 6/6
Flamability Rating Class B 130°C
Core Material M6 29 ga. line grain oriented steel
Termination UL1015, 20 ga. lead wire
Mounting Powder coated steel end bells
Weight 4.5 lbs.
Dimensions 3.22" (L) x 3.44" (W) x 3.82" (H)
Dimensional Drawing 15000-EI125-125-0X
Manual CXPP25-MS-8K Manual
