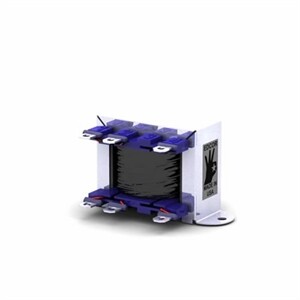

Edcor WSM600/15K

23,71 €
(19,92 € excl. vat)
Scale price:
  • from 5: 17,09 €*
  • from 10: 16,53 €*
  • from 25: 15,47 €*
  • from 50: 14,43 €*
  • from 100: 13,41 €*
* Price per unit
Scale price:
  • from 5: 17,09 €*
  • from 10: 16,53 €*
  • from 25: 15,47 €*
  • from 50: 14,43 €*
  • from 100: 13,41 €*
* Price per unit
including 19% VAT., plus shipping
  • In stock!
  • Shipping time: 1 - 2 workdays
Order Now
Category
Item no.
  • EDCWSM60015K
Product weight
  • 0,18 kg
Shipping weight
  • 0,25 kg
Compliance

Description

1/2W 600 Ohms to 15K Ohms (1:5) line level matching transformer.
Schematic
Wattage 0.5W
Input Maximum Voltage 10Vrms
Turns Ratio 1:5
Primary (input) Impedance 600 Ohms
Primary (input) DCR 56 Ohms
Primary (input) Inductance 1H
Secondary (output) Impedance 15K Ohms
Secondary (output) DCR 303 Ohms
Frequency Response 20~20K Hz., <1dBu
THD+Noise <0.05% @ 1K Hz.
Plot Frequency Response/THD+N
Insertion Loss 0.5 dB
Bobbin Material Glass Filled Nylon 6/6
Flamability Rating Class B 130°C
Core Material M6 29 ga. line grain oriented steel
Termination 0.187" (3/16") quick disconnects
Mounting Zinc plated steel channel/frame
Weight 0.4 lbs.
Dimensions 2.375" (L) x 1.675" (W) x 1.383" (H)
Dimensional Drawing 15000-EI050-625-18
Manual WSM Series Manual
Compliance

Recommend as input transformer for STA Level Compressor
