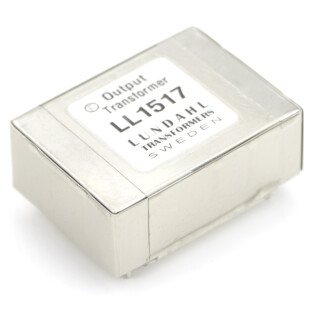

Lundahl LL1517 Output audio transformer

80,62 €
(67,75 € excl. vat)
Recommended retail price: 98,95 €
You save 19%, that is 18,33 €
including VAT., plus shipping
  • In stock!
  • Stock: More than 10 available
  • Shipping time: 1 - 2 workdays
Order Now
Category
Manufacturer
Item no.
  • LL1517
Product weight
  • 0,11 kg
Shipping weight
  • 0,10 kg
Application
Compliance

Interesting items

  1. Lundahl LL1538XL Audio transformer
    Lundahl LL1538XL Audio transformer

    Average Rating: 5/55
    102,57 €
    (86,19 € excl. vat)
    including VAT., plus shipping
  2. Stockli EMI Knob K-3ME red, small
    Stockli EMI Knob K-3ME red, small
    starting from 17,07 €
    (14,34 € excl. vat)
    including VAT., plus shipping

Description

LL1517 is an audio output transformer for balanced or unbalanced drive. The transformer is built from two three section coils, with primaries and secondaries separated by electrostatic shields, and a audio C-core of our own production. The transformer is housed in a mu-metal housing. The LL1517 has sufficient low copper resistance to meet broadcast specifications in a conventional drive configuration, but is (as all output transformers) ideally used with mixed feedback drive circuits. (See separate paper for mixed feedback design principles).

Turns ratio: 1 + 1 : 1 + 1

Technical Details:

  • Dims (Length x Width x Height above PCB (mm)):                                                             47 x 34 x 18

  • Spacing between pins:                                                                                                          5.08 mm (0.2")

  • Spacing between rows of pins:                                                                                            35.56 mm (1.4")

  • Weight:                                                                                                                                  105 g

  • Core:                                                                                                                                      Audio C-core

  • Housing:                                                                                                                                Mu-metal

  • Rec. PCB hole diameter:                                                                                                     1.5 mm

  • Static resistance of each primary:                                                                                       9.2 ohms ?

  • Static resistance of each secondary:                                                                                    9.5 ohms??

  • Leakage inductance of secondaries (sec. in series):                                                            0.3 mH

  • No-load impedance:                                                                                                              Typically > 600 ohms @ 50

                                                                                                                                                          Hz, +20 dBU

  • Optimum source impedance:                                                                                               Minus 18 ohms?

  • Balance of output (according to IRT, source < 10 ohms  , Load 600 ohms??             ? > 60 dB

  • Maximum output level before saturation (sec. in series, load 600 ohms )                         + 24 dBU @ 30 Hz

  • Distortion (achieved with mixed feedback drive circuit, load 600 ohms )                            < 0.03 % @ 20 dBU, 30Hz

  • Frequency response (source 10 ohms ,load 600 ohms ):                                                      10 Hz -- 80 kHz +/- 0.3 dB

  • Loss across transformer (at midband with 600 ? load):                                                     0.3 dB

  • Isolation between primary and secondary windings / between windings and core:       4 kV / 2 kV
