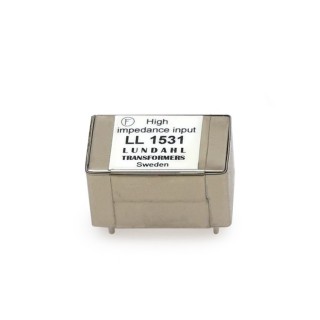

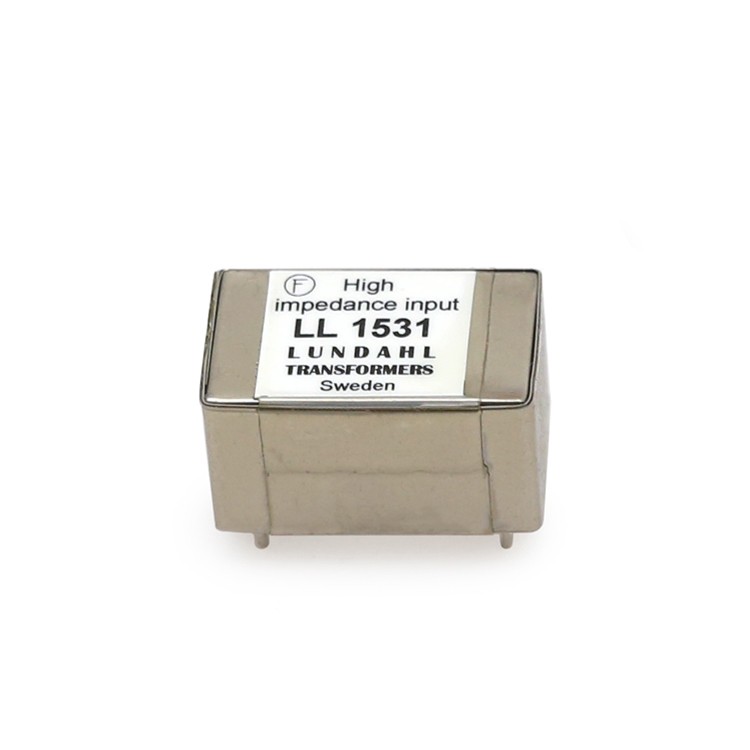

Lundahl LL1531 Audio transformer

5775,11 ₽
(4853,03 ₽ excl. vat)
including 19% VAT., plus shipping
  • Availability: 2
  • Stock: 2 available
  • Shipping time: 1 - 2 workdays
Order Now
Category
Manufacturer
Item no.
  • DALL1531
Product weight
  • 0,03 kg
Shipping weight
  • 0,10 kg
Application
Compliance

Interesting items

  1. Lundahl LL1517 Output audio transformer
    Lundahl LL1517 Output audio transformer
    5157,15 ₽
    (4333,74 ₽ excl. vat)
    including 19% VAT., plus shipping

Description

LL1531 is a small size, high impedance line input transformer for bridging input applications The transformer consists of two coils, each with one primary and one secondary winding separated by an electrostatic shield. The two secondary windings are internally connected in series. The core is a high permeability mu-metal lamination core. The transformer is magnetically shielded by a mu-metal housing. Being a high impedance transformer, the LL1531 should normally be used with primaries connected in series.

Turns ratio: 1 + 1 : 2
Dims (Length x Width x Height above PCB (mm)): 28 x 17 x 15

Suitable transformer for 1:1 applications with 600 ohm source and at least 10K reflecting impedance output 600/10K.
Suitable for 1:1 situations.
