Lundahl LL1682Ag silver wire tube amplifier output transformer

4.762,12 €
(4.001,78 € excl. vat)
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 14 days
  • Shipping time: 15 - 16 workdays
Order Now
Category
Manufacturer
Item no.
  • LL1682Ag
Product weight
  • 1,35 kg
Shipping weight
  • 1,35 kg

Description

The coil is wound using our standard  high internal isolation technique with isolation foil between each copper layer. The core is an audio C-core of our own production.

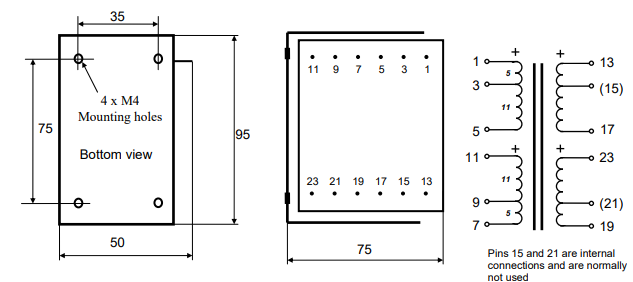

Turns ratio       16+16 : 1+1  or  (5+11)+(5+11) : 1 + 1

Weight:   1.35 kg

Static resistance of each primary: 105 ohms

Static resistance of secondary (connected in parallel as below): 0.4 ohms

Isolation between windings / between windings and core: 4 kV / 2 kV

Max recommended DC current through any primary winding: 160mA
