Lundahl LL1692AAM Amorphous Core Interstage transformer

307,59 €
(258,48 € excl. vat)
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 14 days
  • Shipping time: 15 - 16 workdays
Order Now
Category
Manufacturer
Item no.
  • LL1692AAM
Product weight
  • 0,75 kg
Shipping weight
  • 0,75 kg

Description

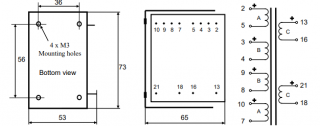

 LL1692A is an interstage transformer for tube amplifiers, impedance-wise placed between LL1660 and LL1671. LL1692A is available with various core air gaps optimised for PP or SE drives.

Weight          0.75 Kg

Turns ratio      1+1+1+1 : 1.75+1.75

Static resistance,   winding A   220 ohms

Static resistance,   winding B  ? 175 ohms

Static resistance,   winding C  ? 345  ohms

Max. DC current through any single section:  70 mA

Isolation between primary and secondary windings / between windings and core: 4 kV / 2 kV
