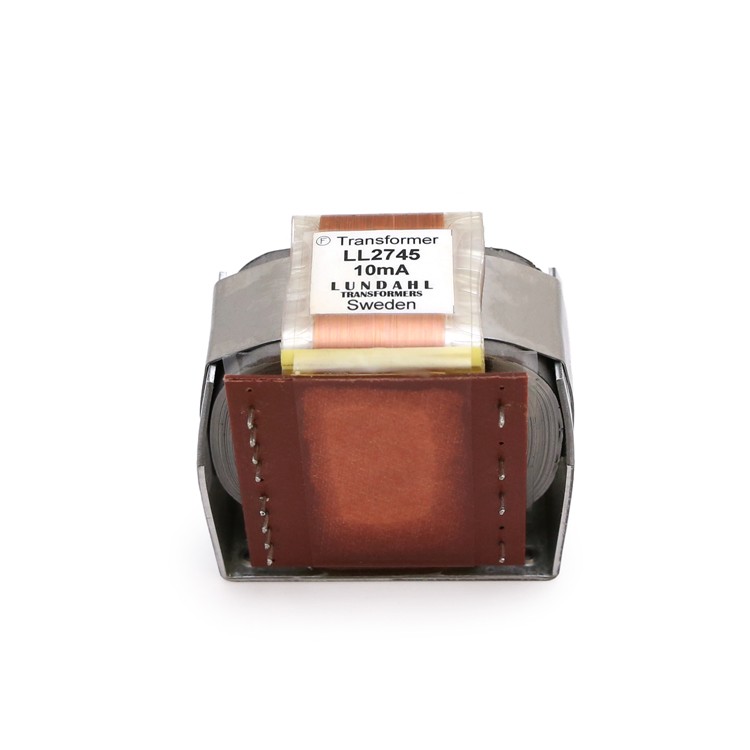

Lundahl LL2745 Line Output Transformer
Manufacturer
Item no.
- LL2745
Product weight
- 0,75 kg
Shipping weight
- 0,75 kg
Interesting items
Description
Turns ratio 1+1+1+1
LL2745 is a line output transformer for tube amplifiers. The transformer is available with different core air gap for PP or SE drives.
The transformer primaries are wound with a special low capacitance winding technique to achieve best high frequency performance. The transformer has a special high flux, low distortion audio C-core of our own production.
The LL2745PP is assembled with a small core air gap to allow for some DC current unbalance.
For the S.E. versions of the LL2745, the core air gap is chosen such that the denoted DC current (18mA for a LL2745/18mA) generates a no signal core flux density of 0.9 Tesla when used with all primaries in series. This leaves a flux density swing of 0.7 T for the signal
