Neutrik NBTB75INN5 Cable Jacks Panel Version

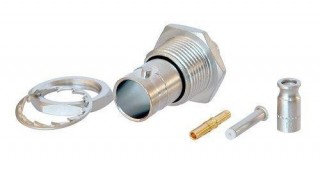

Neutrik NBTB75IFI4 Cable Jacks Panel Version
Description
BNC cable jack for panel mount, isolated
Neutrik's BNC cable jacks for panel mount offer a true 75 ? design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.
Suitable cables:
Belden 1520A, Belden 1521A, Belden 1522A, Belden 179DT, Draka 0.31/1.45 AF, Draka 753-1304(2), Draka 755-1302, Suhner G02233, ZNK CM14B
Crimp size:
Pin: 1.6 mm (square)
Shield: 4.06 mm (hex)
Features & Benefits
- Gold plated center contact
- True 75 ? design meets the stringent HD requirements
- Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
Product
Title
NBTB75IFI4
Connection Type
BNC 75 ?
Gender
female
Electrical
Contact resistance
? 3 m? (inner)
Contact resistance
? 2 m? (outer)
Dielectric strength
0,75 kVdc
Impedance
75 ?
Insulation resistance
> 5 G?
Rated voltage
<50 V
VSWR
?1.050/>32 dB up to 1 GHz
?1.065/>30 dB up to 2 GHz
?1.100/>26 dB up to 3 Ghz
?1.065/>30 dB up to 2 GHz
?1.100/>26 dB up to 3 Ghz
Mechanical
Cable O.D.
4.0 - 7.7 mm
Cable retention
> 30 N (Center)
Crimp size
4,06 Hex crimp (shield) acc. MIL22520/5-39(B)
Crimp size (pin)
1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force
< 25 N
Lifetime
> 1000 mating cycles
Locking device
Bayonett
Cable anchoring
Jacket crimping
Material
Contacts
Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert
PTFE
Shell
Brass (CuZn39Pb3)
Shell plating
Optalloy®
Environmental
Temperature range
-30 °C to +85 °C
Contact crimpability
Complies with IEC 60803 and IEC 60352-2
