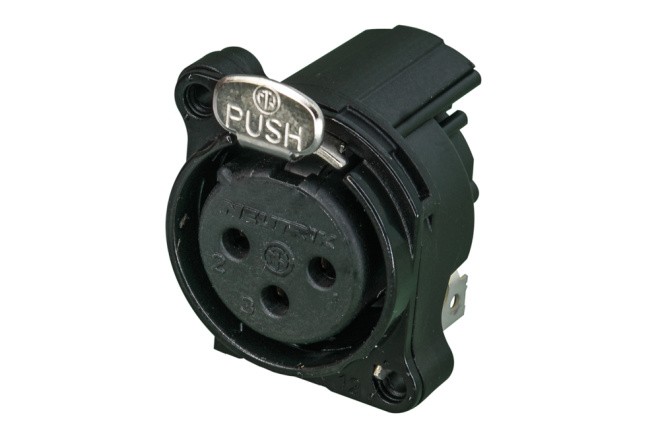

Neutrik NC3FBH1-B XLR Chassis Connector

SKU: NC3FBH1-B-DON

2,62 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: 51 Workdays (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

3 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, horizontal PCB mount, black chrome shell

Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. UL recognized component.

Features & Benefits

Smallest XLR receptacles, highest packing density
Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
Tulip type female contact
Housing flammability UL94V-0

Product

Title

NC3FBH1-B

Connection Type

XLR

Gender

female

Electrical

Capacitance between contacts

? 4 pF

Contact resistance

? 6 m?

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 G? (initial)

Rated current per contact

6 A

Rated voltage

< 50 V

Grounding Options

Pin 1 connected direct to front panel and connector shell, no separate ground contact

Mechanical

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Wiring

Horizontal PCB mount

Locking device

Latch lock

Mounting direction

Rear mounting

Chassis shape

Mounting

B-Screw

Material

Contacts

Bronze (CuSn6)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Steel Ck67

Ring

Zinc diecast (ZnAl4Cu1)

Flange

Black chromium

Environmental

Approvals

Flammability

UL 94 V-0

Standard compliance

IEC 61076-2-103

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Series:	B
