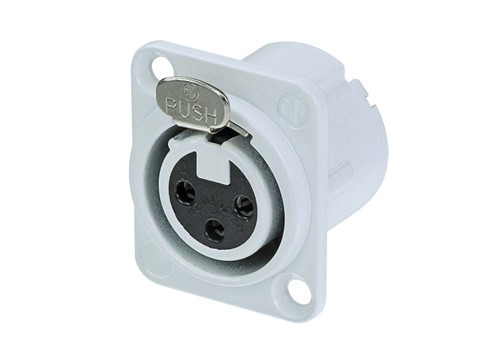

Neutrik NC3FD-LX-WT XLR Chassis Connector

SKU: NC3FD-LX-WT-DON

6,78 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

3 pole female receptacle, solder cups, white painted housing, silver contacts

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.

Features & Benefits

All metal housing offers best overall RF protection and electromagnetic shielding
Duplex ground contact for excellent contact integrity between chassis and cable connector
Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Larger solder contacts for easier termination
Optional connection to easily join pin1 to chassis ground
D-style housing provides installation compatibility with industry standard D mounting dimensions

Product

Title

NC3FD-LX-WT

Connection Type

XLR

Gender

female

Electrical

Capacitance between contacts

? 4 pF

Contact resistance

? 5 m?

Dielectric strength

1.5 kVdc

Insulation resistance

> 10 G?

Rated current per contact

16 A

Rated voltage

< 50 V

Mechanical

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Wiresize

max. 2.5 mm²

Wiresize

max. 14 AWG

Wiring

Solder contacts

Locking device

Latch lock

Chassis shape

Material

Contact plating

2 µm Ag over 2 µm Ni

Contacts

Bronze (CuSn6)

Insert

Polyamide (PA 6 30 % GR)

Locking element

Steel Ck67

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

White painted

Environmental

Flammability

UL 94 HB

Standard compliance

IEC 61076-2-103

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Contacts:	Silver pins
Series:	DLX
