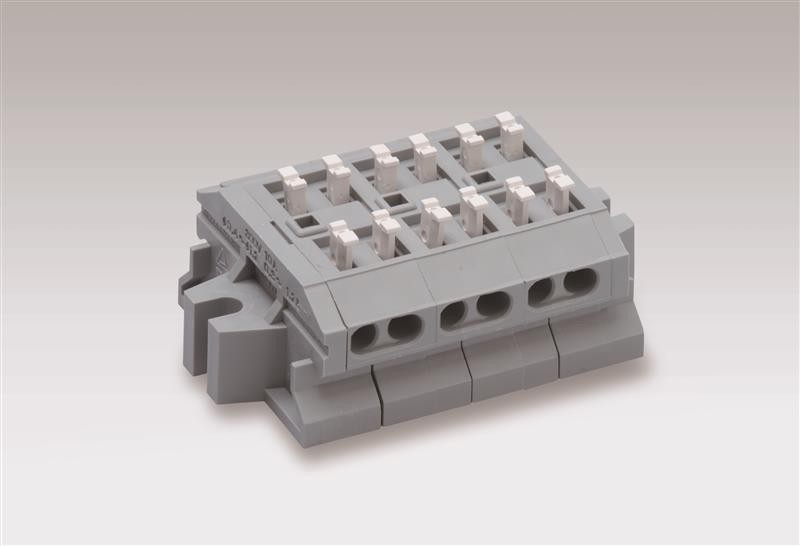

Screwless Terminal ML-1700-B, 300V-10A

starting from 2,68 € per 1 Stk
(2,25 € excl. vat)
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 14 days
  • Minimum purchase: 20 Stk
Order Now
Please select

Category
Item no.
  • ML-1700-B
Product weight
  • 0,01 kg

Description

Specifications:
Terminal model:
Wire strip length: 10mm
Wire range: Solid : 0.4mm-1.2mm (AWG26, AWG16)Stranded : 0.3mm2-1.25mm2 (AWG22, AWG16)
Wire range Diameter: Diameter of each strand : 0.18mm min.
Suitable wire size for maximum rating:
Main insulator (housing): Nylon 66 (UL94V-0)
Number of poles:
Approvals: UL (approved for field wiring)CSA, TUV (IEC60947-7-1)
Dielectric strength: AC2000V (1 min)
Pitch: -
Rating: 300V-10A
