Design Mathematically designed to produce exact plate and screen voltages. These transformers are precision gapped to adjust for unbalanced DC current.
Primary (Input) The input is designed for a 3.2K Ohms impedance source.
Secondary (Output) The output is designed for a specified speaker impedance.
Magnet Wire All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.
The Core EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.
The Bobbin EDCOR's standard bobbin with black finishing tape.
Termination The terminations are UL1015 20 and 18 ga. lead wire.

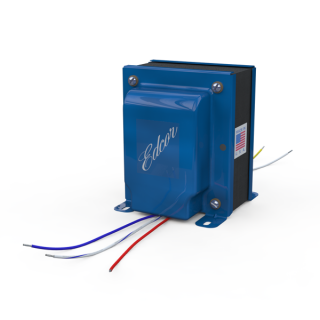

Mounting This unit comes with steel end bells for mounting with the use of four screws. The end bells are powder coated Gentian Blue (RAL 5010) to add to your tube display and overall appearance.
Wattage 25W Max. Current 200mA Primary (input) Impedance 3.2K Ohms Screen/Grid Tap 40% Secondary (output) Impedance Depends on model. Frequency Response 20~20K Hz., <1dBu THD+Noise <0.1% @ 1K Hz. Flammability Rating Class B 130°C Core Material M-6 29 ga. grain oriented lamination steel Secondary Insulation (transformer) Clear air dry polyester varnish Termination UL1015, 20 ga. lead wire Mounting Powder coated steel end bells Color RAL 5010 Gentian Blue Color RAL 5010 Gentian Blue Weight 9.75 lbs. Compliance RoHS & REACH
