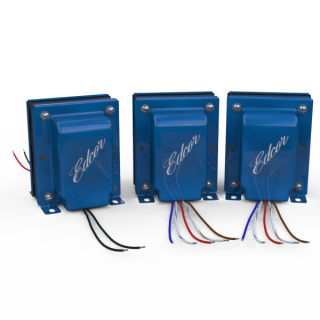

The "OddWatt - ECC802S SRPP / EL84 (6BQ5) Push-Pull Tube Amplifier" A ultra linear class A push-pull valve amplifier using EL84 (6BQ5) tubes designed by Bruce Heran of Oddwatt Audio. For more information and schematics see "OddWatt - ECC802S SRPP / EL84 (6BQ5) Push-Pull Tube Amp" the page on the diyAudioProjects.com. Power Transformer The XPWR105 power transformer is a 120V 60Hz. or 240V, 50/60Hz. line to 360V (180-0-180) at 250mA center tapped and 6.3V at 3A. Audio Output Transformers There are two CXPP25-MS-8K audio transformers. This audio output transformer is a 25W, push-pull tube output transformer for 8K Ohms input impedance to 4, 8, and 16 Ohms. Magnet Wire All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life. The Core EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack. The Bobbin EDCOR's standard bobbin with black finishing tape. Termination The terminations are UL1015, 18 ga. lead wire for the XPWR236 and UL1015, 20 ga. lead wire for the CXPP10-MS-10K. Mounting This unit comes with steel end bells for mounting with the use of four screws. The end bells are powder coated Gentian Blue (RAL 5010) to add to your tube display and overall appearance.
