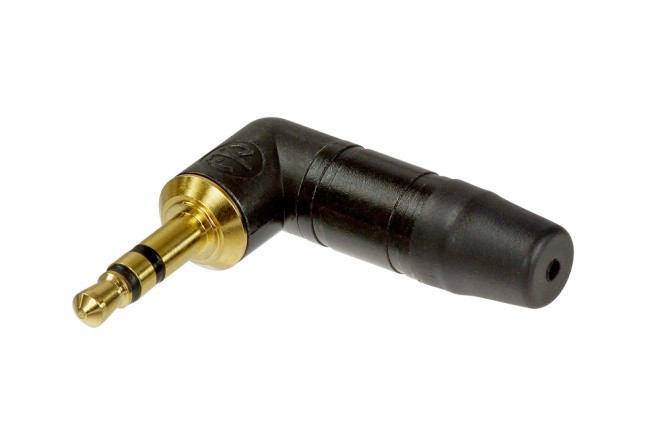

Neutrik NTP3RC-B Plug 3.5 mm Right-Angle Stereo Plug
Category
Item no.
- NTP3RC-B-DON
Contacts
Shell
Description
3 pole 3.5 mm audio plug, solder termination, chuck type strain relief, bushing, black housing, gold contacts
The only right-angled metal bodied 3.5 mm jack plug with chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.
Features & Benefits
- All metal housing - robust and reliable
- Chuck type cable clamp and rubber gland - excellent cable protection
- Slim design - space saving
Product
Title
NTP3RC-B
Connection Type
Plug
Gender
male
Electrical
Contact resistance
depends on mating connector m?
Dielectric strength
1 kVdc
Insulation resistance
> 2 G? (initial)
Rated voltage
<50 V
Mechanical
Cable O.D.
2 - 4.5 mm
Wiresize
0,22 mm²
Wiresize
24 AWG
Wiring
Solder contacts
Material
Bushing
Brass (CuZn39Pb3) + PU, black Cr
Contact plating
0.2 µm Au
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 15 % GR)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Strain relief
Polyacetal (POM)
Environmental
Solderability
Complies with IEC 68-2-20
Temperature range
-20 °C to +65 °C
